Product Description

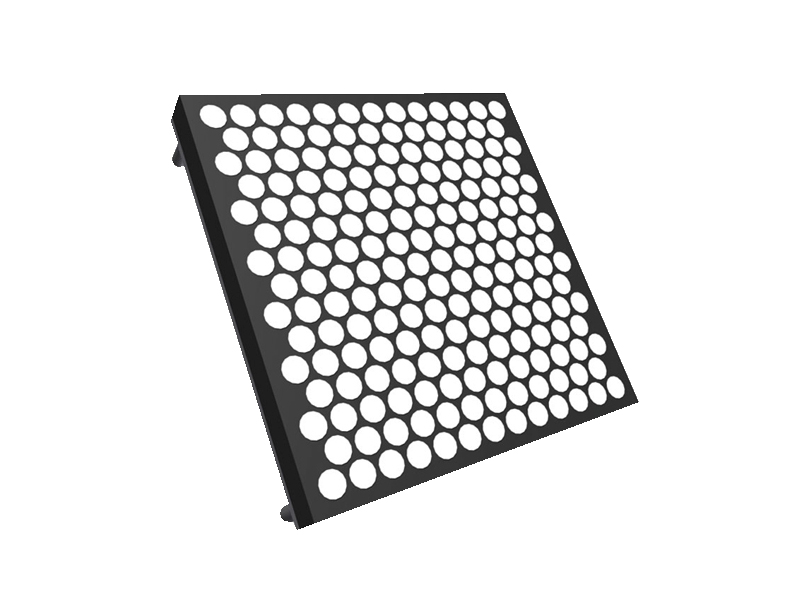

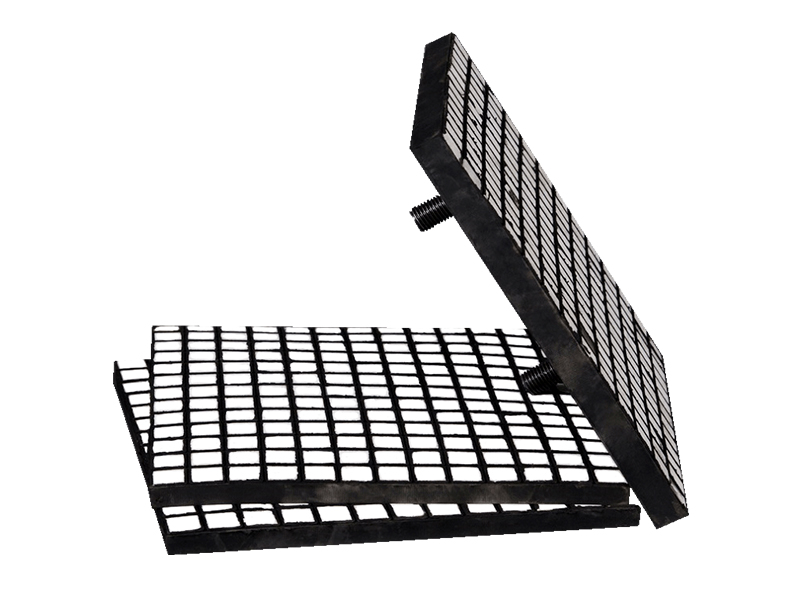

Ceramic Rubber Embedded Steel Liner is also called Three-in-one wear-resistant ceramic liner. The special ceramic sheet is embedded into the special rubber through vulcanization process to form a square wear-resistant rubber-ceramic compound, and then fixed on the inner shell steel plate of the equipment by welding or pasting to form a strong and cushioned wear-resistant layer.

Specification

Fixed Method

(1) Planting bolts on the mounting surface of the steel plate to fix the liner to the equipment substrate;

(2) Weld the steel plate mounting surface to the equipment substrate directly.

(3) According to the installation position of the equipment substrate, reserve bolt holes on the liner plate, and after the liner plate is installed, use high strength adhesive at the reserved holes to cover the wear-resistant ceramics in the openings.

The main parameters and indicators of rubber ceramic composite liner

【Ceramics】

【Rubber】

【Metal and rubber adhesives】

Note:

This adhesive is a kind of polymer liquid adhesive designed for bonding between metal and rubber. It does not need to be cured by heating and pressure when used, and has the advantages of fast bonding on the spot, high bonding strength, resistance to acid, alkali, salt, oil, water and aging, etc.

Application:

Thermal power industry

Bucket wheel stacker barrel and wheel, belt head hopper, raw coal hopper, coal feeder gate, coal drop pipe, coal mill outlet slant pipe

Steel industry

Blast furnace hopper, cylinder mixer

Machinery industry

Hopper

Coal industry

Transfer station skid

Mining industry

Primary crushing, medium crushing, fine crushing, transfer chute hopper

Cement building materials industry

Raw material clinker chute

Smelting industry

Hopper

Chemical industry

Chute

Coal chemical industry

Coal falling pipe

Organic silicon industry

Primary secondary tertiary cyclone dust collector

Port Terminal

Ship unload hopper
